Omschrijving

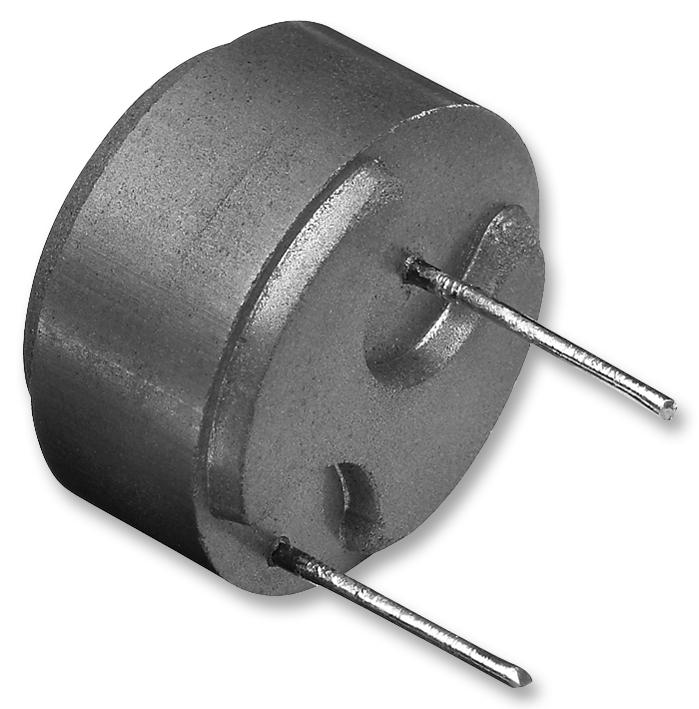

VISHAY - IHTH1125MZEB101M5A - Inductor, IHTH-1125MZ-5A Series, 100 µH, 9.2 A, 11 A, 0.032 ohm, ± 20%
- Product Range: IHTH-1125MZ-5A Series
- Inductance: 100µH
- RMS Current (Irms): 9.2A
- Saturation Current (Isat): 11A
- DC Resistance Max: 0.032ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- Body Diameter: 29.95mm
- Core Material: Iron Powder
- DC Current Rating: 8.4A
- External Length / Height: 12.7mm
- Inductance Measurement Frequency: 100kHz
- Inductor Case Style: Radial Leaded
- Inductor Type: High Current
- Lead Diameter: 1.37mm
- Lead Length: 4.19mm
- Lead Spacing: 16.58mm
- No. of Pins: 2Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Resonant Frequency: 1MHz
