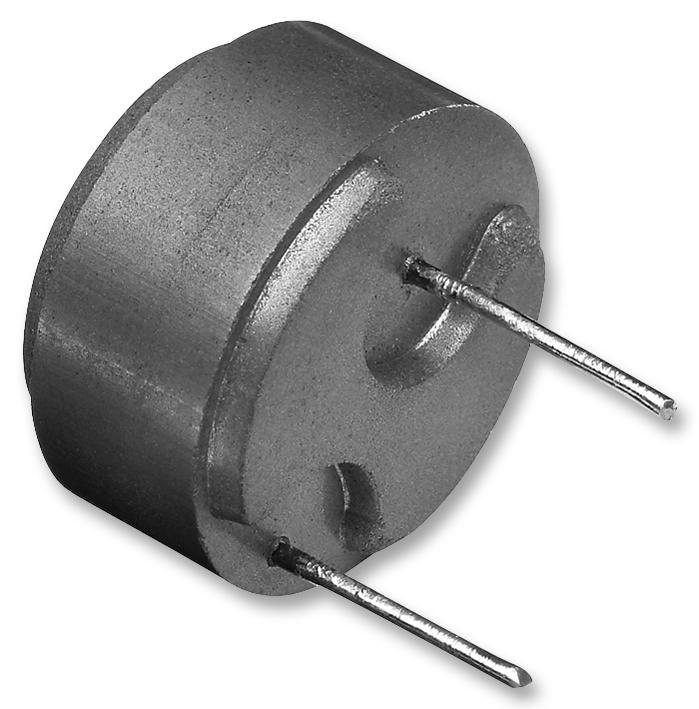

VISHAY - IHTH1125MZEB470M5A - Inductor, IHTH-1125MZ-5A Series, 47 µH, 14.7 A, 16 A, 0.015 ohm, ± 20%
- Product Range: IHTH-1125MZ-5A Series
- Inductance: 47µH
- RMS Current (Irms): 14.7A
- Saturation Current (Isat): 16A
- DC Resistance Max: 0.015ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- Body Diameter: 29.95mm
- Core Material: Iron Powder
- DC Current Rating: 12.4A
- External Length / Height: 12.7mm
- Inductance Measurement Frequency: 100kHz
- Inductor Case Style: Radial Leaded
- Inductor Type: High Current
- Lead Diameter: 1.67mm
- Lead Length: 4.19mm
- Lead Spacing: 19.25mm
- No. of Pins: 2Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Resonant Frequency: 1MHz
