Omschrijving

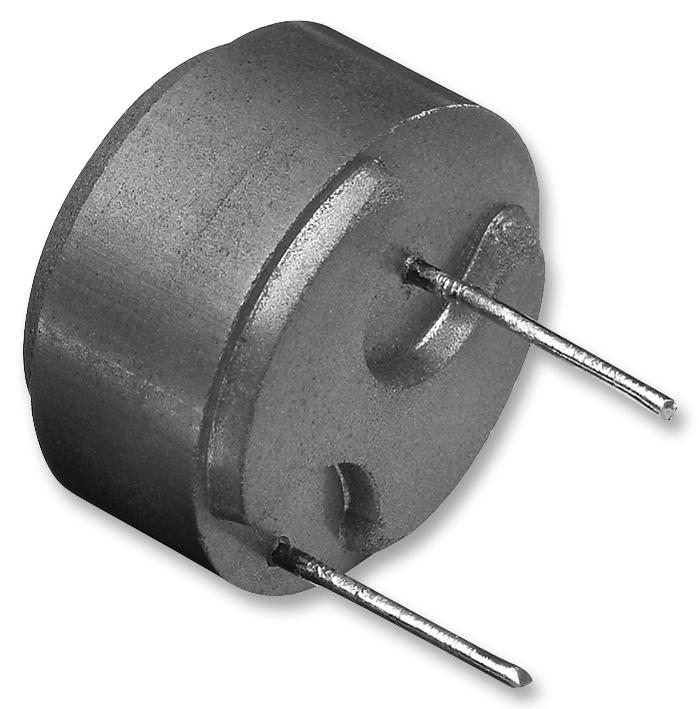

VISHAY - IHTH1125MZEB4R7M5A - Inductor, IHTH-1125MZ-5A Series, 4.7 µH, 44.5 A, 62 A, 2000 µohm, ± 20%
- Product Range: IHTH-1125MZ-5A Series
- Inductance: 4.7µH
- RMS Current (Irms): 44.5A
- Saturation Current (Isat): 62A
- DC Resistance Max: 0.002ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- Body Diameter: 29.95mm
- Core Material: Iron Powder
- DC Current Rating: 36A
- External Length / Height: 12.7mm
- Inductance Measurement Frequency: 100kHz
- Inductor Case Style: Radial Leaded
- Inductor Type: High Current
- Lead Diameter: 2.28mm
- Lead Length: 4.19mm
- Lead Spacing: 21.1mm
- No. of Pins: 2Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Resonant Frequency: 1MHz
