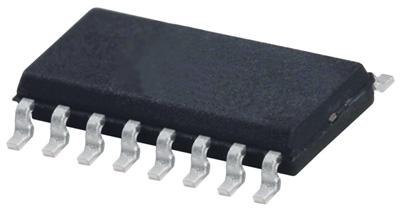

INFINEON - IR2213SPBF - Dual MOSFET Driver, High Side And Low Side, 12V-20V Supply, 2.5A Out, 225ns Delay, SOIC-16
- Driver Configuration: High Side and Low Side
- Peak Output Current: 2.5A
- Supply Voltage Min: 12V
- Supply Voltage Max: 20V
- Driver Case Style: SOIC
- No. of Pins: 16Pins
- Input Delay: 280ns
- Output Delay: 225ns
- Operating Temperature Min: -
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 2213
- Device Type: MOSFET Driver
- IC Generic Number: 2213
- Logic Function Number: 2213
- Module Configuration: High Side, Low Side
- No. of Outputs: 2Outputs
- Offset Voltage: 1200V
- Operating Temperature Range: -40°C to +125°C
- Output Current: 2A
- Output Current + Max: 2000mA
- Output Sink Current Min: 2000mA
- Output Source Current Min: 1700mA
- Output Voltage: 1220V
- Output Voltage Min: 10V
- Power Dissipation Pd: 1.25W
- Supply Voltage Range: 12V to 20V
- Termination Type: Surface Mount Device
- Voltage Vcc Max: 25V
- Voltage Vcc Min: 10V
