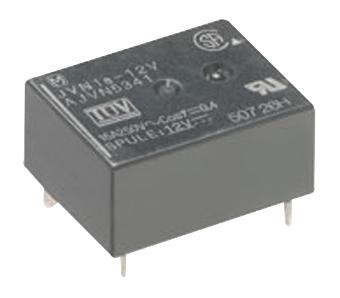

PANASONIC - JVN1AF-5V-F - General Purpose Relay, JV-N Series, Power, Non Latching, SPST-NO, 5 VDC, 16 A
- Contact Configuration: SPST-NO
- Coil Voltage: 5VDC
- Contact Current: 16A
- Product Range: JV-N Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 125VAC
- Relay Terminals: Solder
- Contact Voltage VDC: 30VDC
- Contact Material: Silver Tin Oxide
- Coil Resistance: 101ohm
- SVHC: No SVHC (07-Jul-2017)
- Coil Current: 44.4mA
- Coil Voltage VDC Nom: 5V
- Contact Current Max: 16A
- Contact Voltage AC Nom: 125V
- Contact Voltage DC Nom: 30V
- External Depth: 22mm
- External Height: 10.5mm
- External Width: 16mm
- Nom Operating Power: 200mW
- Relay Type: Power
