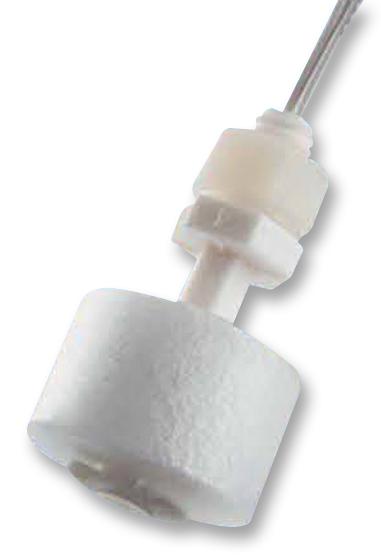

MULTICOMP PRO - MCPLS-031-B-6 - Float Switch, MCPLS Series, Vertical, Miniature, SPST-NC, Polypropylene, 250 Vac, 24mm Diameter
- Operating Pressure Max: -
- Sensor Body Material: PP (Polypropylene)
- Output Current: 2A
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- AC Power: 50VA
- Body Material: PP (Polypropylene)
- Contact Configuration: SPST-NC
- Contact Current AC Max: 1.5A
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 200V
- DC Power: 50W
- Float Diameter: 24mm
- Material: PP
- Operating Temperature Max: 80°C
- Operating Temperature Min: -20°C
- Switching Current AC Max: 1.5A
- Switching Current DC Max: 1.5A
- Travel: 8.5mm
