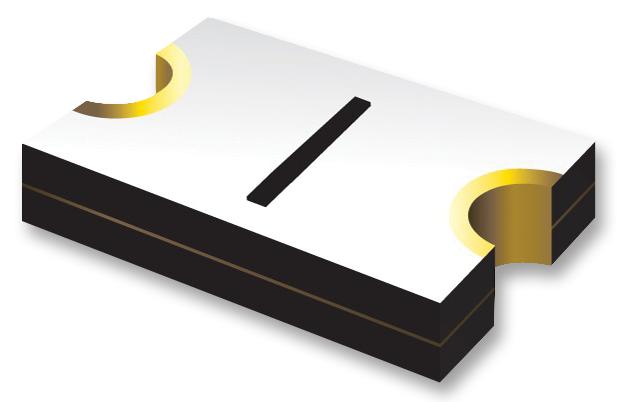

BOURNS - MF-FSMF020X-2 - Resettable Fuse, PPTC, 0603 (1608 Metric), MF-FSMF, 9 VDC, 200 mA, 500 mA, 0.6 s
- Thermistor Mounting: SMD
- Product Range: MF-FSMF Series
- Holding Current: 200mA
- Tripping Current: 500mA
- Voltage Rating: 9V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2018)
- Carrying Current Max: 40A
- Current Max: 40A
- External Depth: 0.85mm
- External Length / Height: 0.47mm
- External Width: 1.65mm
- Holding Current Max Ih: 0.2A
- Initial Resistance Max: 3.5ohm
- Initial Resistance Min: 0.55ohm
- Operating Voltage: 9V
- PTC Fuse Case Style: 0603 [1608 Metric]
- Surface Tripped Temperature Max: 125°C
- Termination Type: Surface Mount Device
- Trip Time: 0.6s
