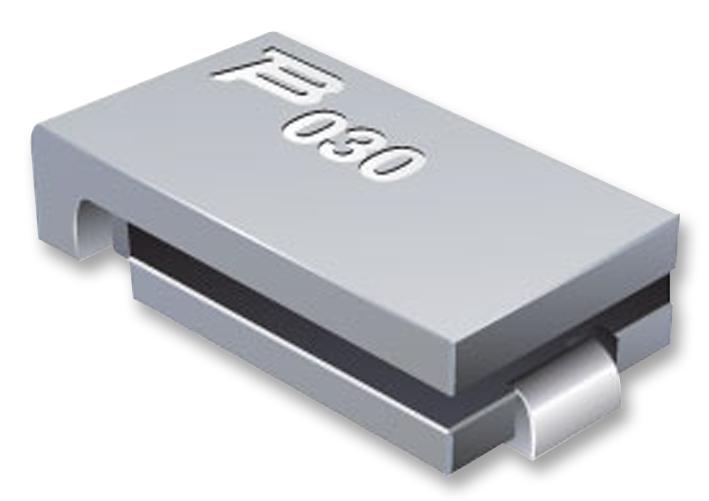

BOURNS - MF-SM185/33-2 - Resettable Fuse, PPTC, 3425 (8763 Metric), MF-SM, 33 VDC, 1.8 A, 3.6 A, 5 s
- Thermistor Mounting: SMD
- Product Range: MF-SM Series
- Holding Current: 1.8A
- Tripping Current: 3.6A
- Voltage Rating: 33V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: AEC-Q200
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, TUV
- Approval Category: UL Recognised
- Carrying Current Max: 40A
- Current Max: 40A
- Holding Current Max Ih: 1.8A
- Initial Resistance Max: 0.15ohm
- Initial Resistance Min: 0.04ohm
- Operating Voltage: 33V
- PTC Fuse Case Style: SMD
- Surface Tripped Temperature Max: 125°C
- Termination Type: Surface Mount Device
- Thermistor Type: PTC Resettable Fuse
- Trip Time: 5s
