Omschrijving

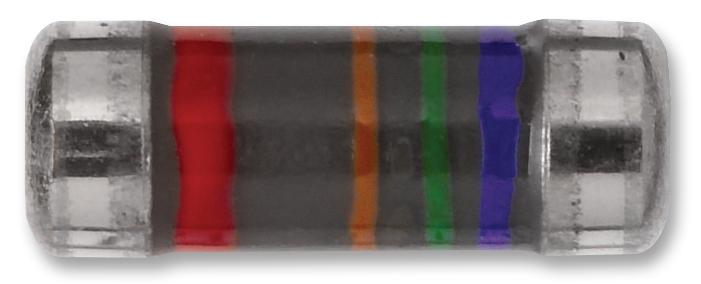

VISHAY - MMU01020C6801FB300 - Surface Mount MELF Resistor, 6.8 kohm, MMU 0102, 100 V, Metal Film, 200 mW, ± 1%
- Resistance: 6.8kohm
- Product Range: MMU 0102 Series
- Voltage Rating: 100V
- Resistor Element Material: Metal Film
- Power Rating: 200mW
- Resistance Tolerance: ± 1%
- Temperature Coefficient: ± 50ppm/°C
- MELF Resistor Case: MELF 0102 [2211 Metric]
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Body Diameter: 1.1mm
- External Length / Height: 2.2mm
- Full Power Rating Temperature: 70°C
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Reel Quantity: 3000
- Resistor Mounting: Surface Mount Device
- Temperature Coeff. +: 50ppm/°C
- Temperature Coeff. -: 50ppm/°C
- Tolerance +: 1%
- Tolerance -: 1%
- Voltage Rating V DC: 150V
- Voltage Rating VAC: 150V
