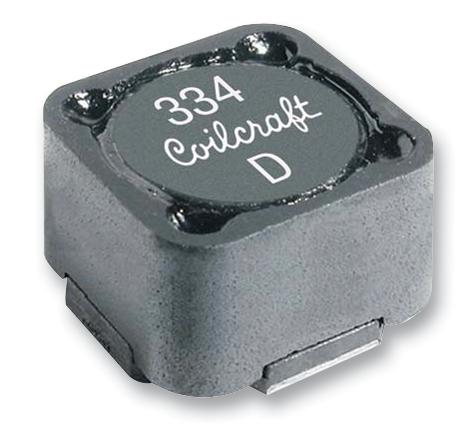

COILCRAFT - MSS1278-563MLD - Power Inductor (SMD), 56 µH, 2.7 A, Shielded, 4.02 A, MSS1278, 12.3mm x 12.3mm x 8.05mm
- Inductance: 56µH
- RMS Current (Irms): 2.7A
- Inductor Construction: Shielded
- Saturation Current (Isat): 4.02A
- Product Range: MSS1278 Series
- Power Inductor Case: 12.3mm x 12.3mm x 8.05mm
- DC Resistance Max: 0.0892ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 7MHz
