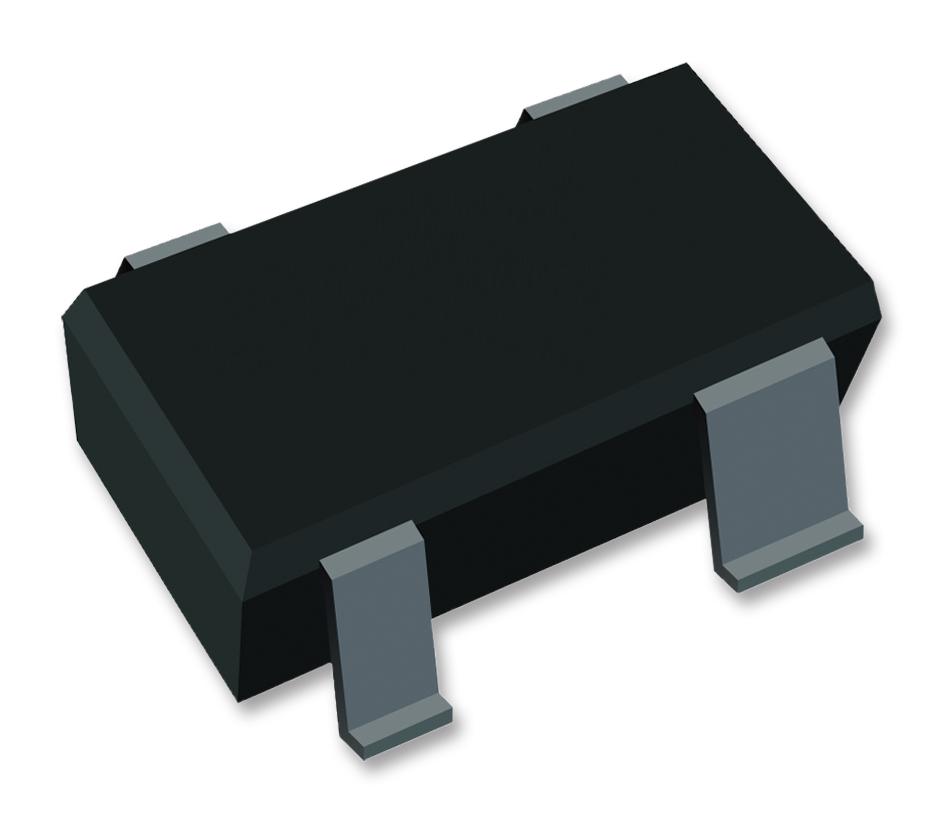

NCV663SQ33T1G LDO, AEC-Q100, FIXED, 3.3V, 0.1A, SC82AB ONSEMI
Ga met de muis over de afbeelding om in te zoomen Klik op de afbeelding om in te zomen
NCV663SQ33T1G LDO, AEC-Q100, FIXED, 3.3V, 0.1A, SC82AB ONSEMI

NCV663SQ33T1G LDO, AEC-Q100, Fixed, 3.3V, 0.1A, SC82AB ONSEMI

ONSEMISKU:NCV663SQ33T1G Bestelcode:2728354
Prijs:
€1,84

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (201 units)

Documenten en downloads

Omschrijving

ONSEMI - NCV663SQ33T1G - LDO Voltage Regulator, AEC-Q100, Fixed, max 6 V in, 230 mV drop, 3.3 V/100 mA out, SC-82AB-4

  • Output Type: Fixed
  • Input Voltage Min: -
  • Input Voltage Max: 6V
  • Fixed Output Voltage Nom.: 3.3V
  • Adjustable Output Voltage Min: -
  • Adjustable Output Voltage Max: -
  • Output Current: 100mA
  • Dropout Voltage Vdo: 230mV
  • LDO Regulator Case Style: SC-82AB
  • No. of Pins: 4Pins
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Product Range: 3.3V 100mA LDO Voltage Regulators
  • Automotive Qualification Standard: AEC-Q100
  • RoHS Phthalates Compliant: Yes
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (27-Jun-2018)
