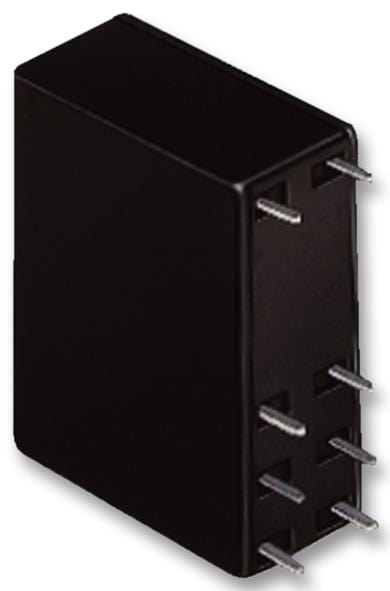

DOLD - OA 5669.12/983 61 DC 24V - Safety Relay, 24 VDC, DPDT, OA 5669, Through Hole, 8 A, Solder
- Coil Voltage: 24VDC
- Contact Configuration: DPDT
- Product Range: OA 5669 Series
- Relay Mounting: Through Hole
- Contact Current: 8A
- Relay Terminals: Solder
- Contact Voltage AC Nom: 400V
- Contact Voltage DC Nom: 250V
- Contact Material: Silver Cadmium Oxide
- IP Rating: IP40
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: EN, IEC
- Coil Resistance: 720ohm
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 3A
- Contact Current DC Max: 2A
- Contact Current Max: 8A
- Contact Voltage AC Max: 230V
- Contact Voltage DC Max: 24V
- External Depth: 29mm
- External Height: 25.5mm
- External Length / Height: 25.5mm
- External Width: 13mm
- Height: 25.5mm
- Material: AgNi10
- Operating Temperature Max: 60°C
- Operating Temperature Min: -40°C
- Power Rating: 2W
- Switch Current Max: 8A
- Switching Current Max: 8A
- Type: 0037288
