Omschrijving

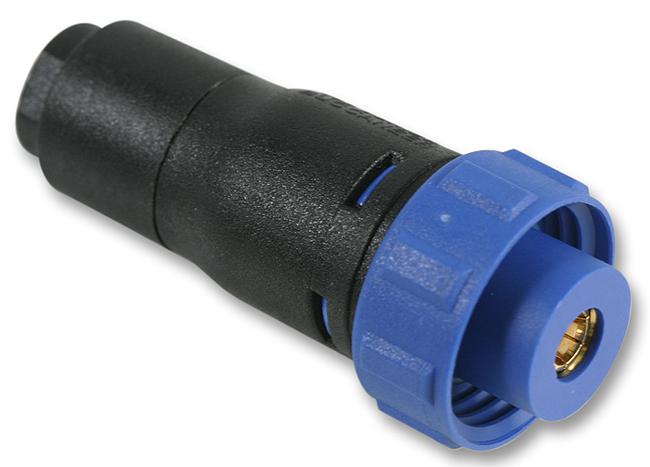

BULGIN LIMITED - PX0415/1 - RF / Coaxial Connector, SMB Coaxial, Straight Plug, Crimp, 50 ohm, RG174, Brass
- Connector Type: SMB Coaxial
- Connector Body Style: Straight Plug
- Coaxial Termination: Crimp
- Impedance: 50ohm
- Coaxial Cable Types: RG174
- Contact Material: Brass
- Contact Plating: Gold Plated Contacts
- Frequency Max: 4GHz
- Connector Mounting: Cable Mount
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: UL
- Centre Contact Resistance: 6mohm
- Coaxial Type: RG174
- External Diameter: 19mm
- Female Contact Plating: Gold
- Flammability Rating: UL94V-0
- Male Contact Plating: Gold
- Operating Frequency Max: 4GHz
- Operating Temperature Max: 80°C
- Operating Temperature Min: -20°C
- Outer Contact Resistance: 2.5mohm
