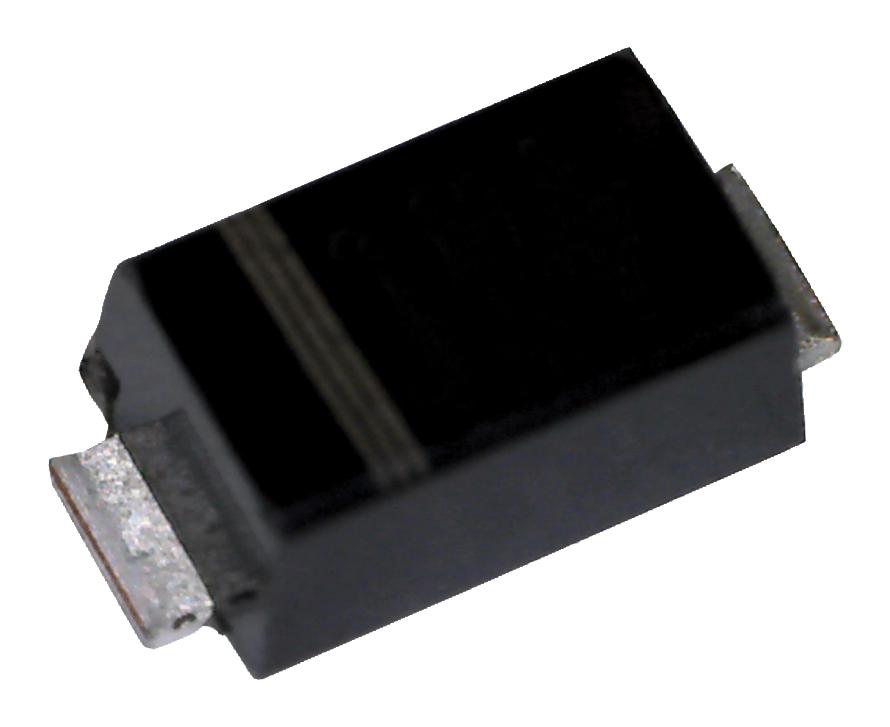

VISHAY - S07M-GS08 - Standard Recovery Diode, Switching, 1 kV, 1.5 A, Single, 1.1 V, 1.8 µs, 25 A
- Repetitive Reverse Voltage Vrrm Max: 1kV
- Forward Current If(AV): 1.5A
- Diode Configuration: Single
- Forward Voltage VF Max: 1.1V
- Reverse Recovery Time trr Max: 1.8µs
- Forward Surge Current Ifsm Max: 25A
- Operating Temperature Max: 150°C
- Diode Case Style: SMD
- No. of Pins: 2Pins
- Product Range: S07M Series
- Automotive Qualification Standard: AEC-Q101
- SVHC: Lead (15-Jan-2019)
- Current Ifsm: 25A
- Junction Temperature Tj Max: 150°C
- No. of Pins: 2 Pin
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Termination Type: Surface Mount Device
