Omschrijving

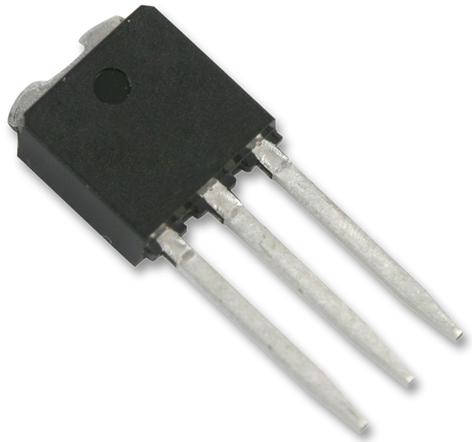

STMICROELECTRONICS - STD2NK90Z-1 - Power MOSFET, N Channel, 900 V, 1.05 A, 5 ohm, TO-251AA, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 1.05A
- Drain Source Voltage Vds: 900V
- On Resistance Rds(on): 5ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 3.75V
- Power Dissipation Pd: 70W
- Transistor Case Style: TO-251AA
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Current Id Max: 2.1A
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Termination Type: Through Hole
- Transistor Type: Power MOSFET
- Voltage Vds Typ: 900V
- Voltage Vgs Max: 30V
- Voltage Vgs Rds on Measurement: 10V
