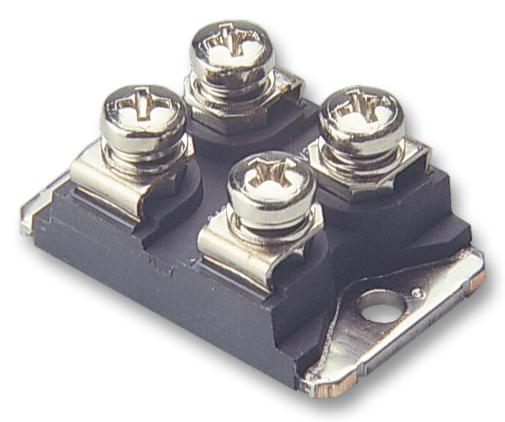

STMICROELECTRONICS - STTH200L06TV1 - Diode Module, 600 V, 240 A, 1.2 V, Dual Isolated, ISOTOP, 4 Pins
- Repetitive Reverse Voltage Vrrm Max: 600V
- Forward Current If(AV): 240A
- Forward Voltage VF Max: 1.2V
- Diode Module Configuration: Dual Isolated
- Product Range: STTH2 Series
- SVHC: No SVHC (17-Dec-2015)
- Current Ifsm: 800A
- Diode Case Style: ISOTOP
- Diode Configuration: Dual Isolated
- Diode Type: Ultrafast Recovery
- Forward Surge Current Ifsm Max: 800A
- Junction Temperature Tj Max: 150°C
- No. of Pins: 4Pins
- Operating Temperature Max: 150°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Reverse Recovery Time trr Max: 80ns
- Reverse Recovery Time trr Typ: 85ns
- Termination Type: Screw
