Omschrijving

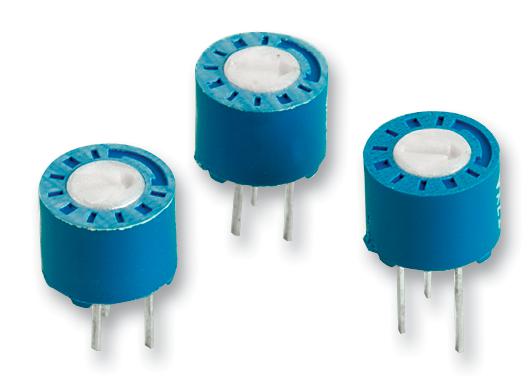

VISHAY - T7YB223MB40 - Trimpot, Single Turn, Cermet, Top Adjust, 22 kohm, Through Hole, 1 Turns
- Track Resistance: 22kohm
- No. of Turns: 1Turns
- Potentiometer Mounting: Through Hole
- Product Range: T7 Series
- Power Rating: 500mW
- Resistance Tolerance: ± 20%
- Temperature Coefficient: ± 100ppm/°C
- Automotive Qualification Standard: -
- MSL: -
- Adjustment Type: Screwdriver Slot
- Body Diameter: 7mm
- Contact Resistance Variation +: 3%
- End Resistance: 1ohm
- External Length / Height: 6mm
- Full Power Rating Temperature: 85°C
- IP / NEMA Rating: IP64
- Insulation Resistance: 1000000Mohm
- Lead Diameter: 1mm
- Lead Length: 4.5mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Resistance: 22kohm
- Resistor Element Material: Cermet
- Resistor Mounting: Through Hole
- Resistor Terminals: Radial Leaded
- Rotation Mechanical Angle: 300°
- Temperature Coeff. +: 100ppm/°C
- Temperature Coeff. -: 100ppm/°C
- Tolerance +: 20%
- Tolerance -: 20%
- Track Taper: Linear
- Voltage Rating: 250V
- Voltage Rating V DC: 250V
