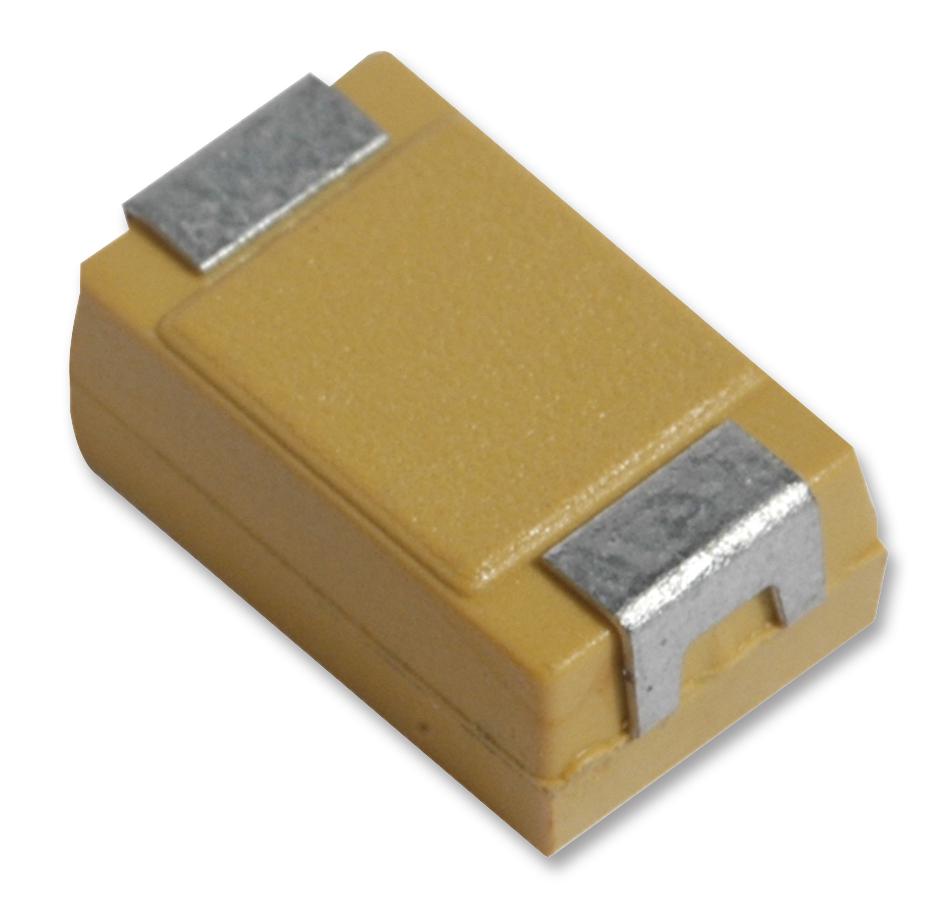

KYOCERA AVX - TPSR105K020R6000 - Surface Mount Tantalum Capacitor, 1 µF, 20 V, 0805 [2012 Metric], ± 10%, 6 ohm, R
- Capacitance: 1µF
- Voltage Rating: 20V
- Tantalum Capacitor Case: 0805 [2012 Metric]
- Product Range: TPS Series
- Capacitance Tolerance: ± 10%
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- ESR: 6ohm
- Manufacturer Size Code: R
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 10%
- Capacitor Case Style: 0805 [2012 Metric]
- Capacitor Mounting: SMD
- Capacitor Terminals: SMD
- External Depth: 1.2mm
- External Length / Height: 2.05mm
- External Width: 1.3mm
- Leakage Current: 0.5µA
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +125°C
- Tolerance +: 10%
- Tolerance -: 10%
- Voltage Rating V DC: 20V
