Omschrijving

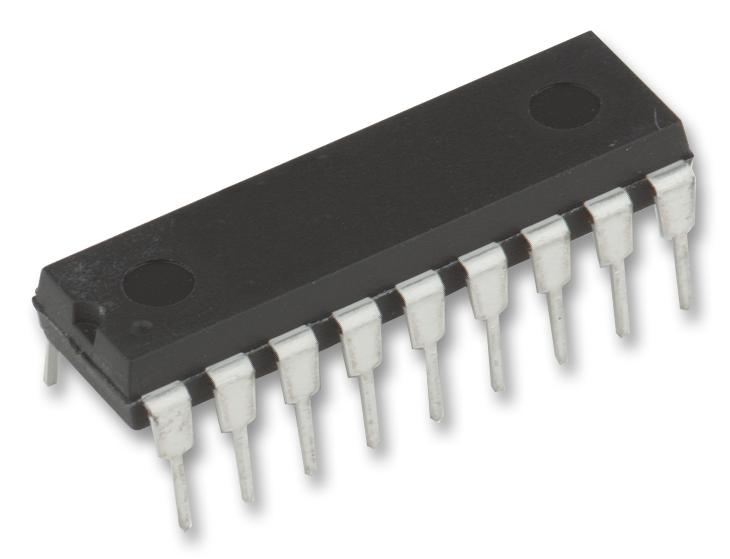

STMICROELECTRONICS - ULN2802A - Bipolar (BJT) Array Transistor, Darlington, NPN, 50V, 2.25W, 500mA, hFE 1000, PDIP-18
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 50V
- Power Dissipation Pd: 2.25W
- DC Collector Current: 500mA
- DC Current Gain hFE: 1000hFE
- Transistor Case Style: DIP
- No. of Pins: 18Pins
- Operating Temperature Max: 85°C
- Product Range: Darlington Transistors
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (17-Dec-2015)
- Base Number: 2802
- Current Ic Continuous a Max: 500mA
- Input Type: PMOS
- Module Configuration: Eight
- No. of Transistors: 8
- Operating Temperature Min: -20°C
- Operating Temperature Range: -20°C to +85°C
- Output Current Max: 500mA
- Output Voltage Max: 50V
