Omschrijving

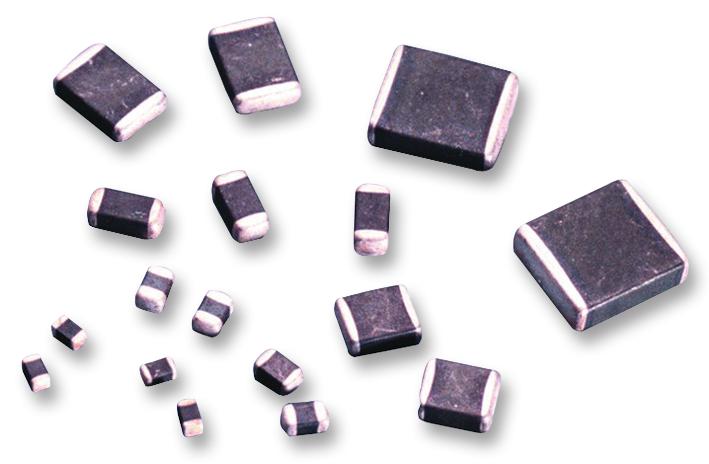

LITTELFUSE - V14MLA0805NH - TVS Varistor, 10 V, 14 V, MLA, 32 V, 0805 [2012 Metric], Multilayer Varistor (MLV)
- Voltage Rating VAC: 10V
- Voltage Rating V DC: 14V
- Product Range: MLA Series
- Clamping Voltage Vc Max: 32V
- Varistor Case Style: 0805 [2012 Metric]
- Varistor Type: Multilayer Varistor (MLV)
- Peak Surge Current @ 8/20µs: 120A
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Peak Energy (10/1000uS): 300mJ
- Automotive Qualification Standard: -
- Capacitance: 560pF
- Clamping Voltage: 32V
- Operating Temperature Range: -55°C to +125°C
- Peak Pulse Current IPP @ 8/20µs: 120A
- Suppressor Type: Varistor
- Surge Current: 120A
- Varistor Voltage @ 1mA: 15.9V
- Varistor Voltage @ 1mA Max: 20.3V
